QHY342Pro II is an APS-C format camera based on the Sony IMX342 global shutter sensor. It offers USB 3.0, Fiber Optic, and Camera Link interfaces to meet different bandwidth and integration requirements. The camera is ideal for machine vision, industrial inspection, and scientific imaging applications.
| Model | QHY342 Pro II |
| Image Sensor | Sony IMX342 |
| Pixel Size | 3.45μm*3.45μm |
| Sensor Size | APS-C |
| Effective Pixels | 31 Megapixels |
| Effective Pixel Area | 6488*4870 |
| A/D | 12bit (output as 16bit and 8bit) |

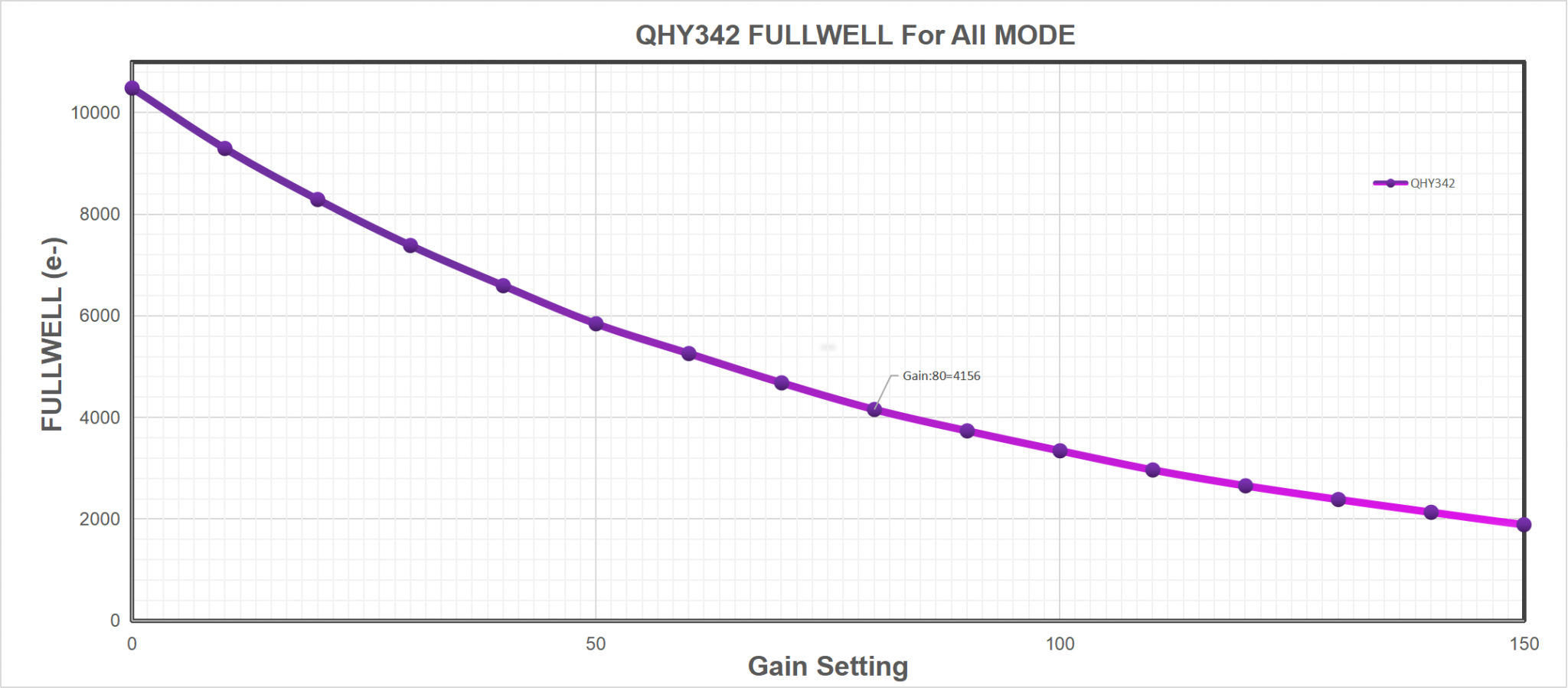

| Full Well Capacity | 10ke- |

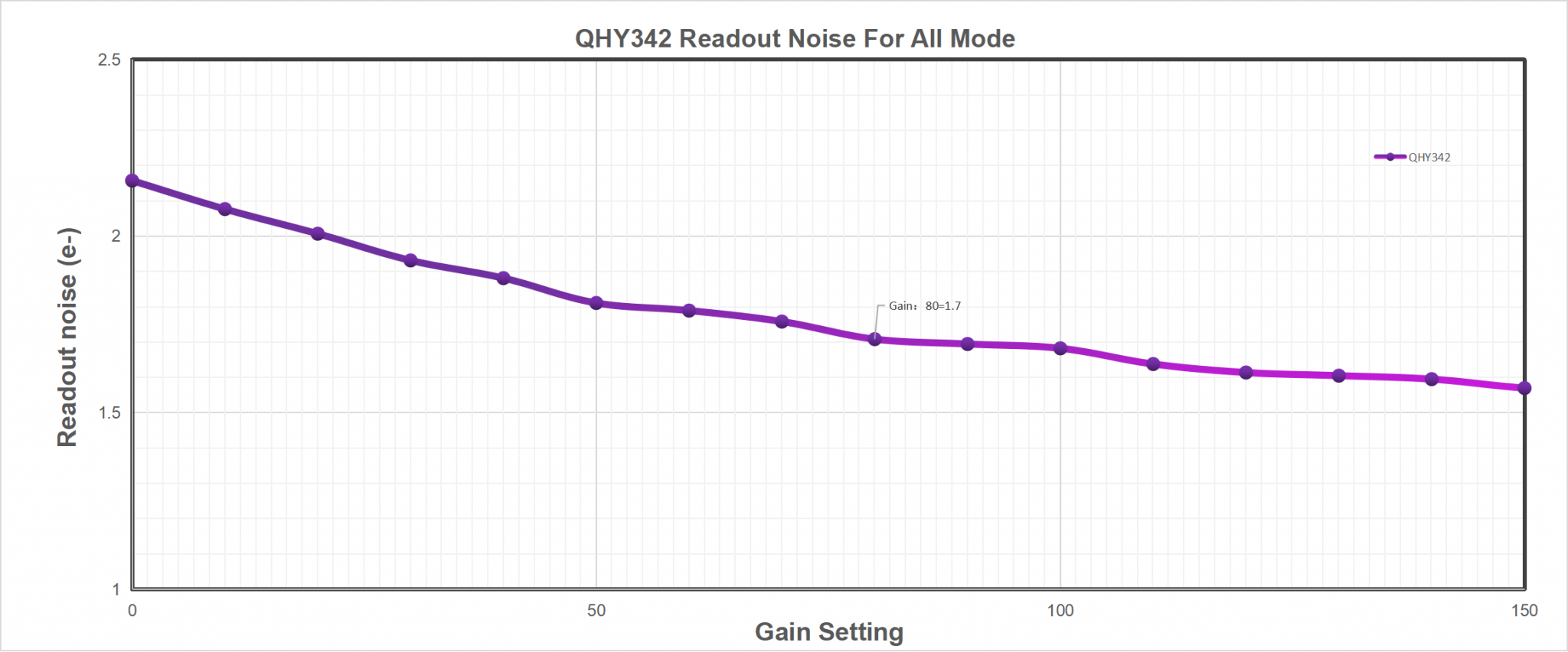

| Read Noise | 1.3e- to 2.1 e- |
| Full Frame Rates | USB3.0:
11.2FPS@6488*4870 8Bit, 5.6FPS@6488*4870 16Bit
2*10G:
25FPS@6488*4870 8Bit, 22FPS@6488*4870 16Bit
CameraLink: TBA |
| Exposure Time Range | 15μs – 900sec |
| Shutter Type | Electronic Global Shutter |
| Computer Interface | USB 3.0
2*10 Gigabit Fiber CamLink |
| Filter Wheel Interface | 4-PIN QHYCCD CFW Port |
| Built-in Image Buffer | 2GB DDR3 Memory Buffer |
| Telescope Interface | M54/0.75 |
| Back Focal Length | 15.5 mm |
| Weight | 945 g |
Please note that you may need to prepare desiccants yourself, because for most countries and regions desiccants are prohibited by air transport. Since QHY always deliver your goods by air, sorry that we can’t provide desiccants for you directly.
Under the vacuum pump, the gas inside the sensor chamber is drawn out through one drying interface, enters the drying tube, and then undergoes filtration. It is then reintroduced into the camera through the other drying interface, circulating back and forth for drying.
Note:1.Do not reverse the order of the intake and exhaust ports
2.Before circulating drying, it is necessary to turn off the refrigerator, and then turn on circulating drying after the temperature returns to normal temperature. Only by following this step can the water vapor in the sealed chamber be effectively removed. If the cooler is turned on, the cooler inside the camera will absorb water vapor, causing more water vapor to condense inside the camera instead of being absorbed by the desiccant.
If you find dust on the CMOS sensor, you can first unscrew the front plate of the cam and then clean the CMOS sensor with a cleaning kit for SLR camera sensors. Because the CMOS sensor has an AR (or AR/IR) coating, you need to be careful when cleaning. This coating can scratch easily so you should not use excessive force when cleaning dust from its surface.
All QHY cooling cameras have built-in heating plates to prevent fogging. However, If the ambient humidity is very high, the optical window of the CMOS chamber may have condensation issues. Then try the following:
1. Avoid directing the camera towards the ground. The density of cold air is greater than of hot air. If the camera is facing down, cold air will be more accessible to the glass, causing it to cool down and fog.
2. Slightly increase the temperature of the CMOS sensor .
3. Check if the heating plate is normally working. If the heating plate is not working, the glass will be very easy to fog, the temperature of the heating plate can reach 65-70 °C in the environment of 25 °C. If it does not reach this, the heating plate may be damaged. Please contact us for maintenance.
Please avoid thermal shock during use. Thermal shock refers to the internal stress that the TE cooler has to withstand due to the thermal expansion and contraction when the temperature of the TEC suddenly rises or falls. Thermal shock may shorten the life of the TEC or even damage it.
Therefore, when you start using the TEC to adjust the CMOS temperature, you should gradually increase the TEC power rather than turning the TEC to maximum power. If the power of the TEC is high before disconnecting the power supply, you should also gradually reduce the power of the TEC and then disconnect the power supply.
