QHY367C PRO is the improved version of QHY367C. We redesigned the CMOS sensor structure and use the Flexible Printed Circuit (FPC) to replace the previous PCB. This FPC is very small and it allows us to seal the CMOS sensor manually instead of standard reflow soldering.
*Price shall be slightly different among countries and regions; Shipment expenses, customs or other taxes not included.
QHY367C PRO is the improved version of QHY367C. We redesigned the CMOS sensor structure and use the Flexible Printed Circuit (FPC) to replace the previous PCB. This FPC is very small and it allows us to seal the CMOS sensor manually instead of standard reflow soldering.
QHY367C Pro is a full frame color cooled cmos camera with SONY IMX094 sensor. 14bit ADC, zero amplifier glow. QHY367C Pro is one of the top performing full frame camera among COLDMOS Series.The Sony Exmor IMX094 CMOS sensor is also found in the Nikon D800/810 DSLR cameras. This sensor is implemented in the QHY367C Pro specifically for astronomical use with QHYCCD thermal noise reduction technology. With read noise as low as 2.4e-, full well capacity of 56ke-, the camera has a dynamic range of more than 14 stops.
Features
TRUE RAW Data
In the DSLR implementation there is a RAW image output, but typically it is not completely RAW. Some evidence of noise reduction and hot pixel removal is still visible on close inspection. This can have a negative effect on the image for astronomy such as the “star eater” effect. However, QHY Cameras offer TRUE RAW IMAGE OUTPUT and produces an image comprised of the original signal only, thereby maintaining the maximum flexibility for post-acquisition astronomical image processing programs and other scientific imaging applications.
Anti-Dew Technology
Based on almost 20-year cooled camera design experience, The QHY cooled camera has implemented the fully dew control solutions. The optic window has built-in dew heater and the chamber is protected from internal humidity condensation. An electric heating board for the chamber window can prevent the formation of dew and the sensor itself is kept dry with our silicon gel tube socket design for control of humidity within the sensor chamber.
Cooling
In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise. As a result the dark current of the camera is 0.0015e-/p/s at -15℃.
Specifications
Model
QHY367C PRO
CMOS Sensor
Sony IMX094
Mono/Color
Color
FSI/BSI
FSI
Pixel Size
4.88um*4.88um
Effective Pixel Area
7376*4938
Effective Pixels
36MP
Sensor Size
Full Format36mm*24mm
Fullwell
56ke-
AD Sample Depth
14bit
Full Frame Rate
3.2FPS
Readout Noise
2.4e- to 3.2e-
Dark Current
0.0015e/pixel/sec @-15C
Exposure Time Range
60us-3600sec
Unity Gain
2800
Amp Glow
Zero Amp
Shutter Type
Electric Rolling Shutter
Computer Interface
USB3.0
Built-in Image Buffer
128MB DDR2 Memory
Cooling System
Dual Stage TEC cooler(about -45C below ambient)(Test temperature +20°)
Optic Window Type
AR+AR High Quality Multi-Layer Anti-Reflection Coating (For color camera user need to add a UV/IR filter in the light path)
Anti-Dew Heater
Yes
Telescope Interface
M54/0.75
Back Focal Length
17.5mm
Weigth
678g
Curves
Mechanical Dimensions

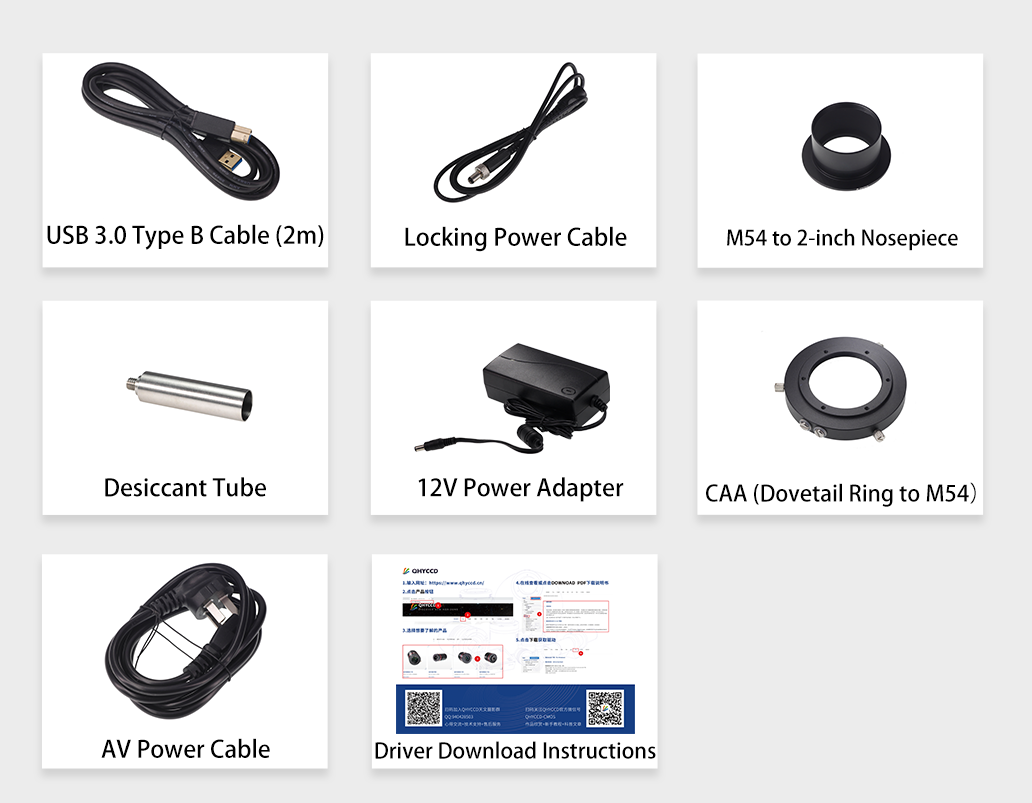

Accessories and Match
Combos and Adapter Kits
Generally speaking, there’s no need for an OSC (one shot colored) camera to match filter wheel. If there’s any special needs, please refer to mono cam combos and choose the corresponding filter wheel. All OSC cams use OAG M if needed.
Model
BFL Consumed
QHY600C/410C/367C/128C/247C/168C
17.5mm+6mm (CAA)
QHY268C (Version before 2022)
17.5mm+6mm (CAA)
OAGM
10mm
*About IR-Cut filter:
The sealing glass of QHY OSC cameras whose format are above APS-C is AR glass instead of IR/Cut filter. That’s because when the sensor size is bigger, if IR/Cut is closed to sensor, it’s easy to cause haloing effect on image. We use IR/Cut filter as sealing glass on 4/3 format cameras or below, like 163C, 183C; as for big sensor OSC cams, such as 268C, 367C, we provide a special adapter for fixing 2-inch IR/Cut filter at a farther position from the sensor, or users can fix the filter inside the default T mount.
D1

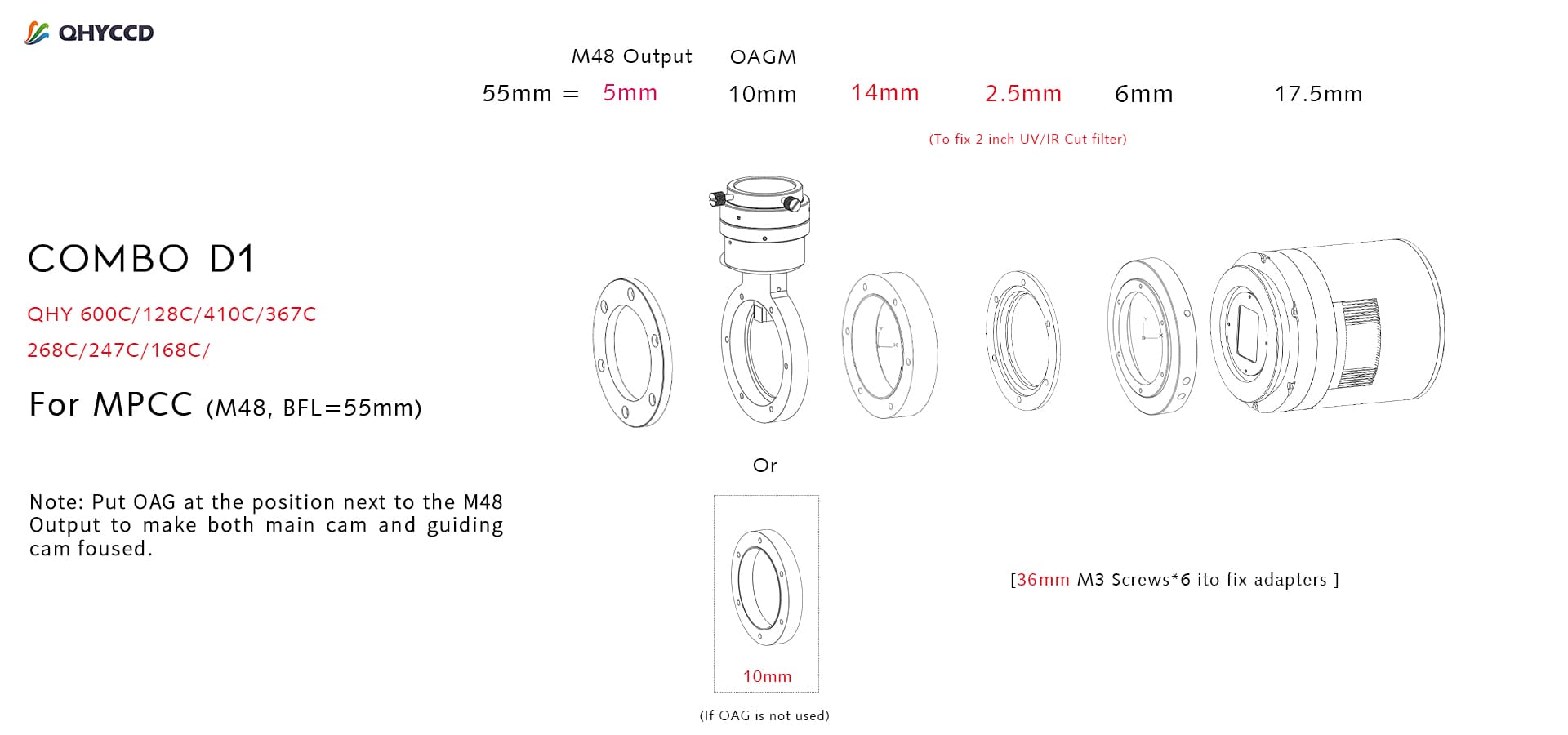

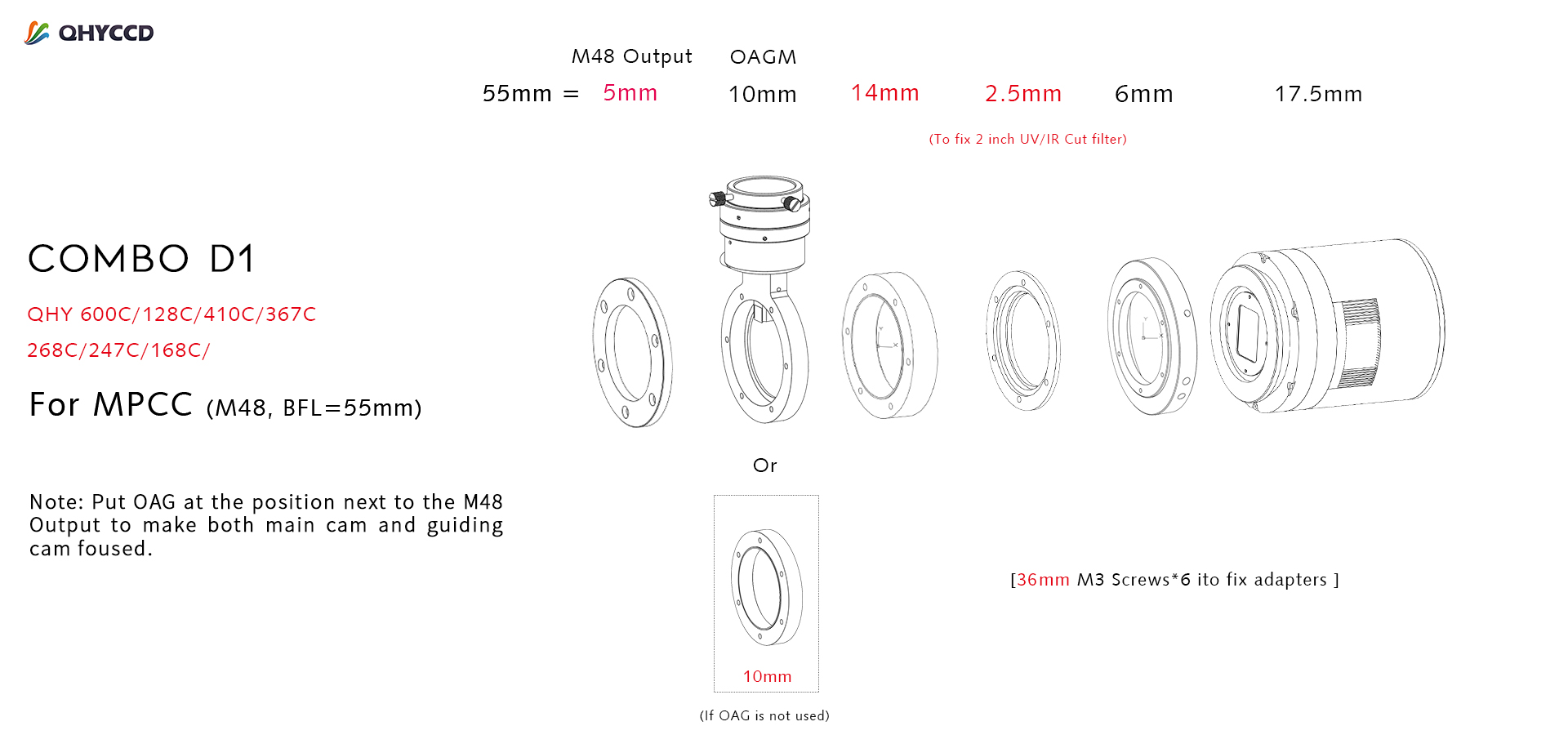

D1: Connecting MPCC with 55mm BFL and M48 interface
If you don’t use an OAG, please use 10mm adapter in the adapter kits to fill the original position of OAG.
D2

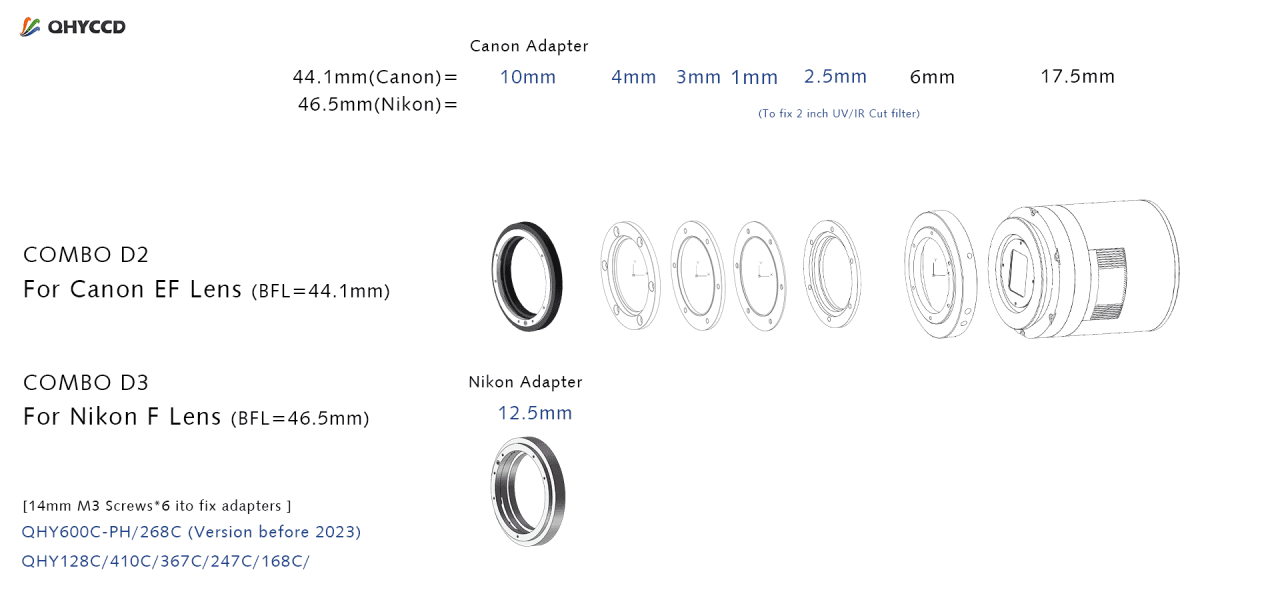

D2: Connecting Canon EF Lens
D3
Connecting Nikon F Lens
User Guide: Start the Camera
Install “All-In-One” Driver&SDK Pack
Before Start: Input Voltage Requirements
The camera requires an input voltage between 11V and 13.8V. If the input voltage is too low the camera will stop functioning or it may reboot when the TEC power percent is high, causing a drain on the power. Therefore, please make sure the input voltage arrived to the camera is adequate. 12V is the best but please note that a 12V cable that is very long or a cable with small conductor wire may exhibit enough resistance to cause a voltage drop between the power supply and the camera. The formular is: V(drop) = I * R (cable). It is advised that a very long 12V power cable not be used. It is better to place the 12V AC adapter closer to the camera.
First connect the 12V power supply, then connect the camera to your computer via the USB3.0 cable. Make sure the camera is plugged in before connecting the camera to the computer, otherwise the camera will not be recognized. When you connect the camera for the first time, the system discovers the new device and looks for drivers for it. You can skip the online search step by clicking “Skip obtaining the driver software from Windows Update” and the computer will automatically find the driver locally and install it. If we take the 5IIISeries driver as an example (shown below), after the driver software is successfully installed, you will see QHY5IIISeries_IO in the device manager.
Please note that the input voltage cannot be lower than 11.5v, otherwise the device will be unable to work normally.
Install "All-In-One" System Pack
All-in-one Pack supports most QHYCCD models only except PoleMaster and several discontinued CCD cameras.
Since most of the contents of All-in-one package are plug-ins that support third-party software, the third-party capturing software that you want to use must be installed before the All-in-one package. Otherwise the program will report an error.
ALL-IN-ONE Pack contains:
System Driver, which is necessary for the camera operation and must be installed.
WDM Broadcast Driver, which can provide a live signal to Obs and other live software, you can install it if you have such needs like opeing a live show.
EZCAP_QT , which is developed by QHYCCD and can be used in QHY devices tests, and management of updates. So even if you won’t use EZCAP_QT for capturing, we suggest you install it.
Ascom driver, which is necessary for the camera used in Ascom (the latest version of Ascom is 6.6).
The two sorts of Ascom CFW Drivers correspond to two methods of controling the filter wheel: USB control and camera serial control. It is recommended that both drivers should be installed if you have a filter wheel.
CP210X_VCP is a serial driver. Some computers come with the driver, but the computer without the driver may be failed of controling the filter wheel.
SDKs for Third-party Software: Just pick and install the corresponding SDK according to the software you want to use. Don’t forget to check whether the software you are using is 32-bit or 64-bit and select the right SDKs.
SHARPCAP is also included in the pack, you can choose 32-bit or 64-bit to install. This is authorized by SHARPCAP.
QT LIB is a plug-in to ensure that 64-bit software can exeuate normally on some computers with poor compatibility.
Difference between Stable version and Beta Version: Beta version is the latest version, which gives priority to support for the latest products (the stable version may not be compatible with those yet), and has some of the latest optimized ,but experimental features. The stable version is older than the beta version but more stable, so it is recommended for beginners who are not using the latest products.
Don’t let the camera connect to the computer during the All-in-one pack installation process; connect it to the computer after all the installation is complete.
Connect DSO Imaging Software (e.g. NINA)
Before using software, make sure you have connected the cooling camera to the 12V power supply and connected it to the computer with a USB3.0 data cable. If it’s an uncooled camera, 12V power is not needed. We recommend 64-bit Software, like SharpCAP x64 , N.I.N.A x64. etc., especially when you’re using 16bit cameras.
In NINA, you can select the device to connect to QHY Camera directly without ASCOM driver.
If connecting to the camera via ASCOM is desired, first make sure you have installed both the QHYCCD ASCOM Drivers and ASCOM Platform. Then you would select the appropriate camera driver under the ASCOM section. Then click the Connect icon. Here we take NINA as an example, but it’s similar to other software packages supporting ASCOM, like MaxDL, The SkyX, etc.
Launch SharpCap. If the software and drivers mentioned above are installed successfully, the video image will appear automatically about 3 seconds after the software loads. You will also see the frame rate in the lower left corner of the software window as shown below.
If you have already started the SharpCap software before connecting the camera, in order to open the camera, click on the “camera” in the menu bar and then select the device.
Offset adjustment. When you completely block the camera (i.e., like taking a dark frame) you may find that the image is not really zero. Sometimes this will reduce the quality of the image contrast. You can get a better dark field by adjusting the offset. You can confirm this by opening the histogram as indicated in the figure below.
If you want to enter the 16-bit image mode, select the “RAW16” mode.
By selecting the “LX” mode you can expand the exposure setting range and take long exposures.
After cooling devices connected to the 12V power supply, the temperature control circuit will be activated. You can control the CMOS temperature by adjusting the settings in the figure below. Basically, you can control the temperature of CMOS by either adjusting “Cooler Power” or clicking “Auto” and setting “Target Temperature”. You can also see the CMOS temperature at the lower-left corner of the software window.
Camera Maintenance
Drying the camera CMOS chamber
There is a hole in the side of the camera near the front plate that is normally plugged by a screw with an o-ring. If there’s moisture in the CMOS chamber that causes fog, you can connect the desiccant tube to this hole for drying. There would better be some cotton inside to prevent the desiccants from entering the CMOS chamber.
Please note that you may need to prepare desiccants yourself, because for most countries and regions desiccants are prohibited by air transport. Since QHY always deliver your goods by air, sorry that we can’t provide desiccants for you directly.
Cleaning the CMOS sensor and optical window
If you find dust on the CMOS sensor, you can first unscrew the front plate of the cam and then clean the CMOS sensor with a cleaning kit for SLR camera sensors. Because the CMOS sensor has an AR (or AR/IR) coating, you need to be careful when cleaning. This coating can scratch easily so you should not use excessive force when cleaning dust from its surface.
Preventing fogging of the CMOS chamber
All QHY cooling cameras have built-in heating plates to prevent fogging. However, If the ambient humidity is very high, the optical window of the CMOS chamber may have condensation issues. Then try the following:
1. Avoid directing the camera towards the ground. The density of cold air is greater than of hot air. If the camera is facing down, cold air will be more accessible to the glass, causing it to cool down and fog.
2. Slightly increase the temperature of the CMOS sensor .
3. Check if the heating plate is normally working. If the heating plate is not working, the glass will be very easy to fog, the temperature of the heating plate can reach 65-70 °C in the environment of 25 °C. If it does not reach this, the heating plate may be damaged. Please contact us for maintenance.
TE Cooler Maintenance
Please avoid thermal shock during use. Thermal shock refers to the internal stress that the TE cooler has to withstand due to the thermal expansion and contraction when the temperature of the TEC suddenly rises or falls. Thermal shock may shorten the life of the TEC or even damage it.
Therefore, when you start using the TEC to adjust the CMOS temperature, you should gradually increase the TEC power rather than turning the TEC to maximum power. If the power of the TEC is high before disconnecting the power supply, you should also gradually reduce the power of the TEC and then disconnect the power supply.
FAQs
Now the FAQ part has been intergrated into “QHYCCD Help Center“–Knowledge base
This is QHYCCD Help Center. Here you can:
Submit a Ticket: Describe the issue you met while you’re using them. Our technicans will reply you in 48 hours during working days. You don’t have to check the Ticket update everyday—they can receive email notifications and know if there’s any update.
Knowledge Base: Here lists some tips for using your gears, or solutions to issues that you may met. Help your self!
Support History: Check your ticket’s status.
Appendix: How to Set Gain and Offset
Because of some characteristics of CMOS cameras like insufficient AD sampling rate (12/14bit), or higher gain resulting in lower read-out noise, there is no “best setting”. We should understand about read out noise, full well capacity, system gain, as well as noise from the background sky cosmic waves, to help us setting the suitable GAIN and OFFSET.
Unity Gain of Some Models
Gain Setting
For beginner, we recommend that you set the gain to “unit-gain”. Unit-gain is the gain when system gain is 1 (1e/ADU). This number is shown in the table above, like the unit-gain of QHY168C is 10. In fact, increasing or decreasing a bit doesn’t make a big difference.
You could increase or decrease Gain according to the condition. For example, if your optical system is fast, like F2.2 to F5, or long exposure for more than 5 minutes without narrowband filters, then you can decrease GAIN to achieve a higher dynamic range and make better use of full well capacity. By doing so you can avoid overexposure.
If you use narrowband filter on a slow optical system like F6 to F10, or short exposure time, the amount of photons received will be less. In this case you can increase GAIN to make better use of characteristics of low read-out noise in high GAIN value.
OFFSET Setting
There is no fixed “best value” for OFFSET. To set OFFSET, you should take the bias frame and dark frame at a certain GAIN value, then check the histogram of the frames.
The histogram distribution is a peak-like curve. While changing the OFFSET value, the histogram will move left or right. We need to guarantee the range of the whole curve won’t be chopped off at the end. At the same time, we need to keep a little residue on the left side, just over 0 a bit.
Pay attention that under different GAIN values, the width of this peak varies. The higher the GAIN is, the wider the distribution will be. So OFFSET value at low GAIN is not suitable for high GAIN because the curve is easily to be chopped off.
Advanced Settings
For those CMOS less than native 16-bits, the AD sampling accuracy doesn’t match perfectly with the full well capacity. At low GAIN level, the system gain will be couple electrons per ADU. The camera loses the ability to distinguish the strength of the signal because of such sampling error.
When GAIN increases, the system gain will decrease. However, increasing GAIN will limit the full charge of the well. If the system gain is 1 for a 12bit CMOS camera, the pixel will be saturated at only 4096 electrons (full well). Some bright stars will be easily saturated. This problem goes worse under fast optical system or long exposure. Over saturated objects cannot be fixed during post processing (unless you shrink stars, like in PixInsight). Also, the color saturation of the star will be affected. As result, the stars will be huge and white washed. We should decrease the gain value in this case, to gain a higher full well capacity.
Under long exposure or using fast optical system, the pixel will receive more photons. The variation of quantized noise from the photon which you can consider as natural dithering of the light intensity, will be greater than the “noise” from the sampling error. Therefore, the effect of the sampling error will diminish. By averaging multiple exposures, this will compensate the lack of depth of the picture because of the sampling error.
If the number of received photons is limited, like using narrowband filters or short exposures, we can increase the GAIN value. It is because the stars will not be easily saturated. At the same time, we limit the noise from the background cosmic radiation. Under this condition, the readout noise and quantized noise are the major factors that affect the ability to distinguish dim light or objects. By increasing the GAIN value in order to decrease the readout noise and quantized noise from sampling error, this would greatly increase the signal to noise ratio.
Appendix: Bayer Sequences of Some Colored Cameras
Cooled CMOS Camera
Bayer
QHY600C/QHY268C/QHY410C/
QHY367Pro/QHY128Pro/QHY294C/
QHY247C/QHY168C/QHY165C/QHY183C/QHY174C
RGGB
QHY533C/QHY178C/QHY290C/QHY224C
GBRG
QHY163C
GRBG
QHY1920C
BGGR
Cooled CCD Camera
Bayer
QHY8L-C
GBRG
QHY10-C
RGGB
QHY12-C
BGGR
Planetary and Guiding
Bayer
QHY5III174C
RGGB
QHY5III178C
GBRG
QHY5III224C
GBRG
QHY5III290C
GBRG
QHY5III462C
GBRG
QHY5III485C
RGGB
QHY5L-II-C
GRBG
QHY5P-II-C
GBRG
QHY5III585C
RGGB
QHY5III678C
RGGB
QHY5III715C
GBRG
Appendix: White Balance Adjustment
When SharpCAP starts, it will use the default white balance, which is R:G:B=1:1:1. Therefore, the image you see is greenish (as shown below). Because from the light efficiency curve of the color CMOS chip, the response to green light is the highest. In order to obtain the correct white balance, you need to perform manual white balance adjustment.
For color cameras, SharpCAP will automatically open the progress bar of the white balance adjustment function, and you can make adjustments.
Since white balance is the ratio of light sensitivity between red and green, and the ratio of light sensitivity between blue and green, you can first fix the green value to 128. Then adjust the red and blue.
For example, after adjustment, blue is 255 and red is 161, and now it looks much better. If you need more blue, because the blue has reached 255 and cannot be adjusted upwards, in this case, you can reduce the green appropriately. Then adjust again. In this way, a larger proportion can be obtained.
As we said before. If you are doing planetary imaging you should set the offset value as low as possible. To make the background close to zero. Then you can easy to get correct color balance. Otherwise it will not easy to get it. The The following image shows the offset is good and you can not get good balance.
The reason is that the Color balance is a ratio of the RGB sensitivity difference. So we use a ratio to multiple the RGB value and get it done. But if there is a bias exist. The ratio will not be correct. For example, the G sensitivity is two times than R.
G=2R In order to get white balance. We multiply a ratio of 2 to R
R’=2R= G so we get R=G
When a bias exist. The bias is a constant add to each pixel. So the image you see is:
R’’=R+bias
G’’=G+bias=2R+bias
Now the ratio R”:G”=(R+bias)/(2R+bias) and it is not equ to 1:2. It shows the bias will effect the true value of the R:G. And the ratio of R:G will arious when the image light changed. It is hardly to correct with a fixed ratio.
But for DSO capture, You should keep the offset above zero and avoid the background is cut off. A background from 1000-5000 is a good value(16bit mode) for DSO imaging.
