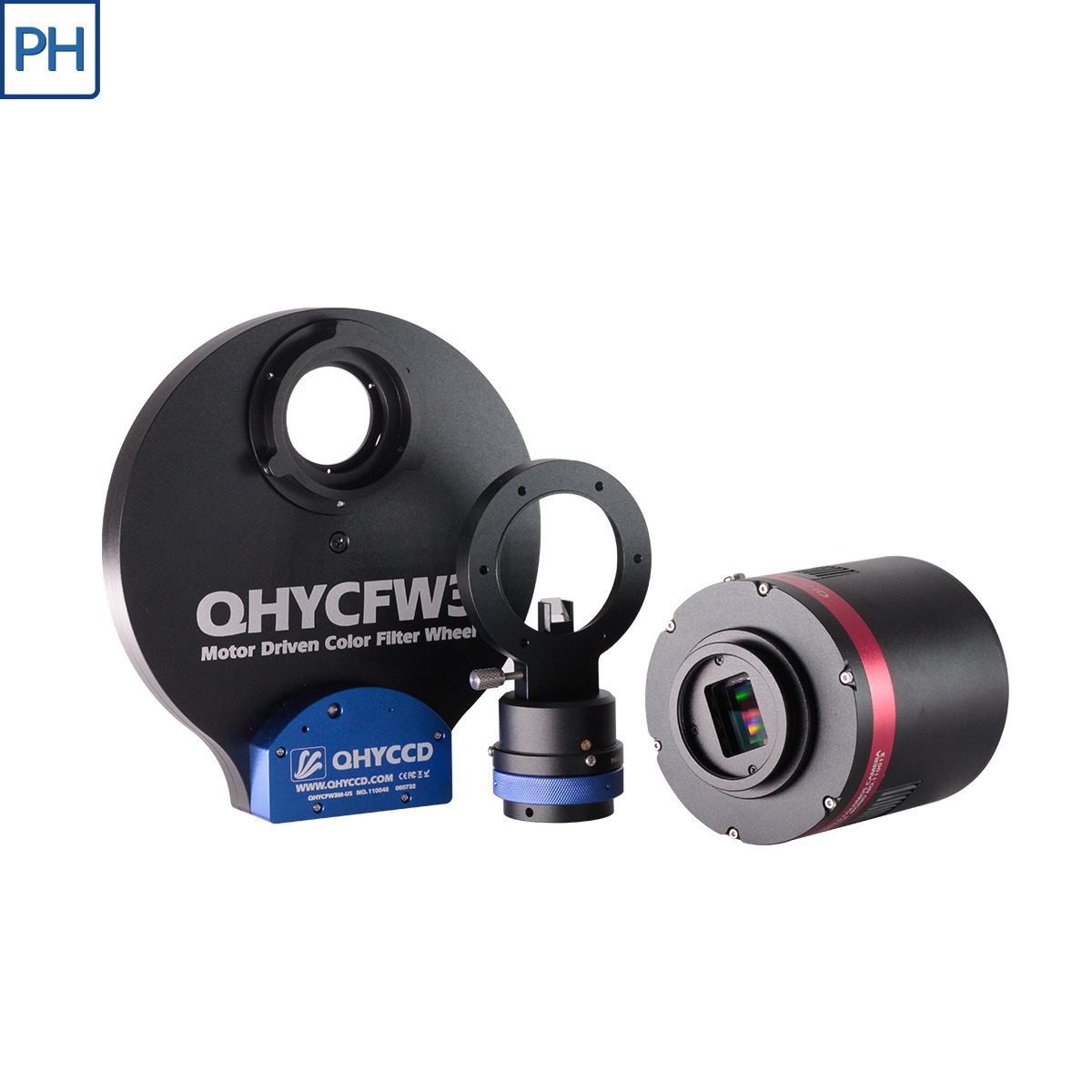

QHY294M+CFW3M-US+(OAGM)

A1: Connecting MPCC that requires 55mm BFL and M48 interface to Camera with Filter Wheel and OAG.

Note:

1. If you only own CFW3M-SR whose BFL is 20.5mm rather than 17.5mm, this adapter combination can still be used, just remove the 3mm and 0.5mm adapters.
2. If your MPCC requires a BFL different from 55mm, this adjustment can be made by selecting the appropriate spacer between the MPCC and the OAG.  For example, an MPCC that requires 57.5mm can be used instead by adding a spacer ring or rings that add 2.5mm of BFL. to the diagram above.
3. If you don’t use an OAG, you can use a 10mm spacer adapter in the adapter kits to replace the original position of OAG.
4. Put OAG at the position next to the M48 Output to make both main cam and guiding cam focused.

A2: Connect Canon lens with filter Wheel. You need to remove the filter wheel and the original connection interface of the camera and replace it with a new adapter.

A3: Connect Nikon F Lens to Camera with Filter Wheel
