QHYCFW2-S

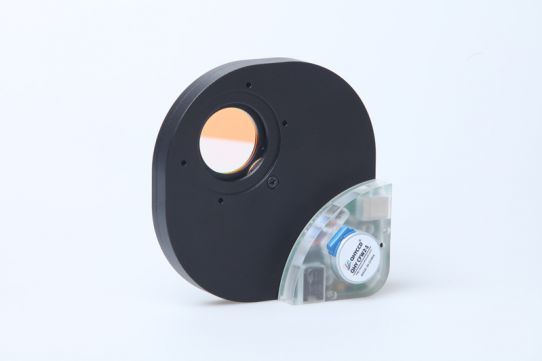

The QHYCFW2-S (small) holds five 36mm umounted filters or six 1.25-inch mounted filters in threaded cells.  The filter wheel is only 15.5mm thick and weighs only 365g.

The QHYCFW2-S is the second generation color filter wheel.  We improved both the mechanical and electrical design over the previous version.  The new QHYCFW2-S has the following advantages:

    Gear driven disk. Stable and solid.
    Specially designed filter disk to allow different glass thickness for unmounted filters. From 0.7mm to 7mm.
    Motor moved to a corner to increase the work area.
    Increased the precision of filter positioning.
    Supports USB port and powered by USB when connected with computer.
    Supports the 4-pin QHY CFW socket on QHY11,QHY21/22/23 and InterCam series camera.
    Supports the 2-pin socket with QHY9 (requires external power supply).
    Open Source Firmware, Arduino compatible.

Driver and Software Download
ASCOM FiltersPlug-in
ASCOM Filter[RS232] plug-in
Document Download
Manual

FAQ
Refer to User Manual

Others



Mechanical drawings for QHYCFW2-S
